#!/usr/bin/env python3
# Copyright (C) 2017-2025 elphmod Developers
# This program is free software under the terms of the GNU GPLv3 or later.
import elphmod
import matplotlib.pyplot as plt
import numpy as np
comm = elphmod.MPI.comm
info = elphmod.MPI.info
mu = -0.1665
colors = ['orange', 'skyblue', 'dodgerblue']
info('Set up Wannier Hamiltonian')
el = elphmod.el.Model('data/NbSe2')
info('Diagonalize Hamiltonian along G-M-K-G')
path = 'GMKG'
k, x, corners = elphmod.bravais.path(path, ibrav=4, N=150)
e, U, order = elphmod.dispersion.dispersion(el.H, k,
vectors=True, order=True)
e -= mu
info('Diagonalize Hamiltonian on uniform mesh')
E = elphmod.dispersion.dispersion_full(el.H, 72) - mu
info('Calculate density of states')
w = np.linspace(E.min(), E.max(), 150)
DOS = 0
for n in range(el.size):
DOS = DOS + elphmod.dos.hexDOS(E[:, :, n])(w)

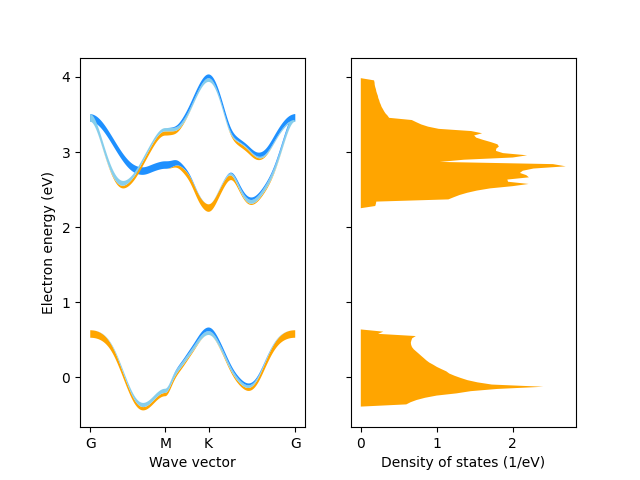

info('Plot dispersion and density of states')
if comm.rank == 0:
fig, (ax1, ax2) = plt.subplots(1, 2, sharey=True)
ax1.set_ylabel('Electron energy (eV)')
ax1.set_xlabel('Wave vector')
ax2.set_xlabel('Density of states (1/eV)')
ax1.set_xticks(x[corners])
ax1.set_xticklabels(path)
for n in range(el.size):
fatbands = elphmod.plot.compline(x, e[:, n],
0.1 * (U[:, :, n] * U[:, :, n].conj()).real)
for fatband, color in zip(fatbands, colors):
ax1.fill(*fatband, color=color, linewidth=0.0)
ax2.fill(DOS, w, color=colors[0], linewidth=0.0)
plt.savefig('electrons.png')
plt.show()
